How to configure Pincode based delivery and create delivery charge based on zone in an Integration portal

How to configure Pincode based delivery and create delivery charge based on zone in an Integration portal

The Pincode based delivery feature is available to both OrderEasy Basic and Pro customers. Using this feature, we can add all the Pincodes we want to deliver so that the end-user needs to enter the Pincode to see delivery availability. When there are multiple outlets, a user doesn't need to pick a store; instead, they enter a Pincode and their orders are sent to the nearest one. You can set the delivery charges for each zone according to your convenience


Step 1: Log in to the Integration Portal using your credentials

Step 2: Go to the App settings by selecting Configuration

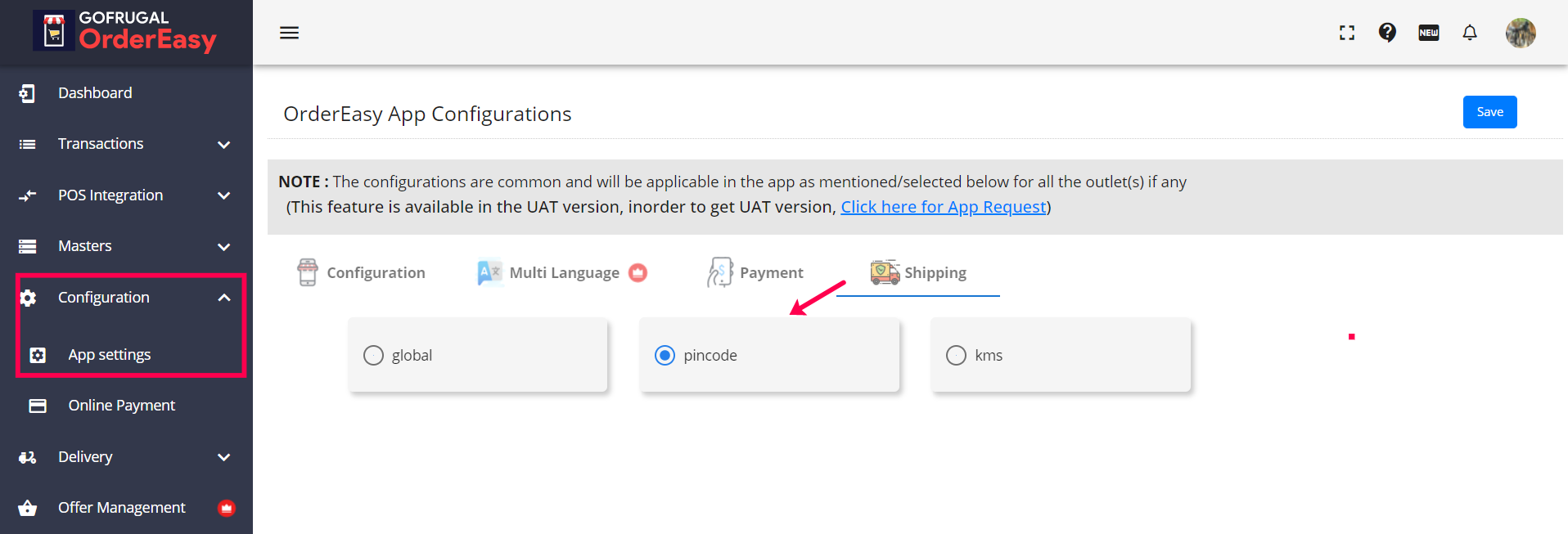

Step 3: You can change the mode of delivery in the App settings by selecting the shipping option at the top

Step 4: Please select the pincode option and save

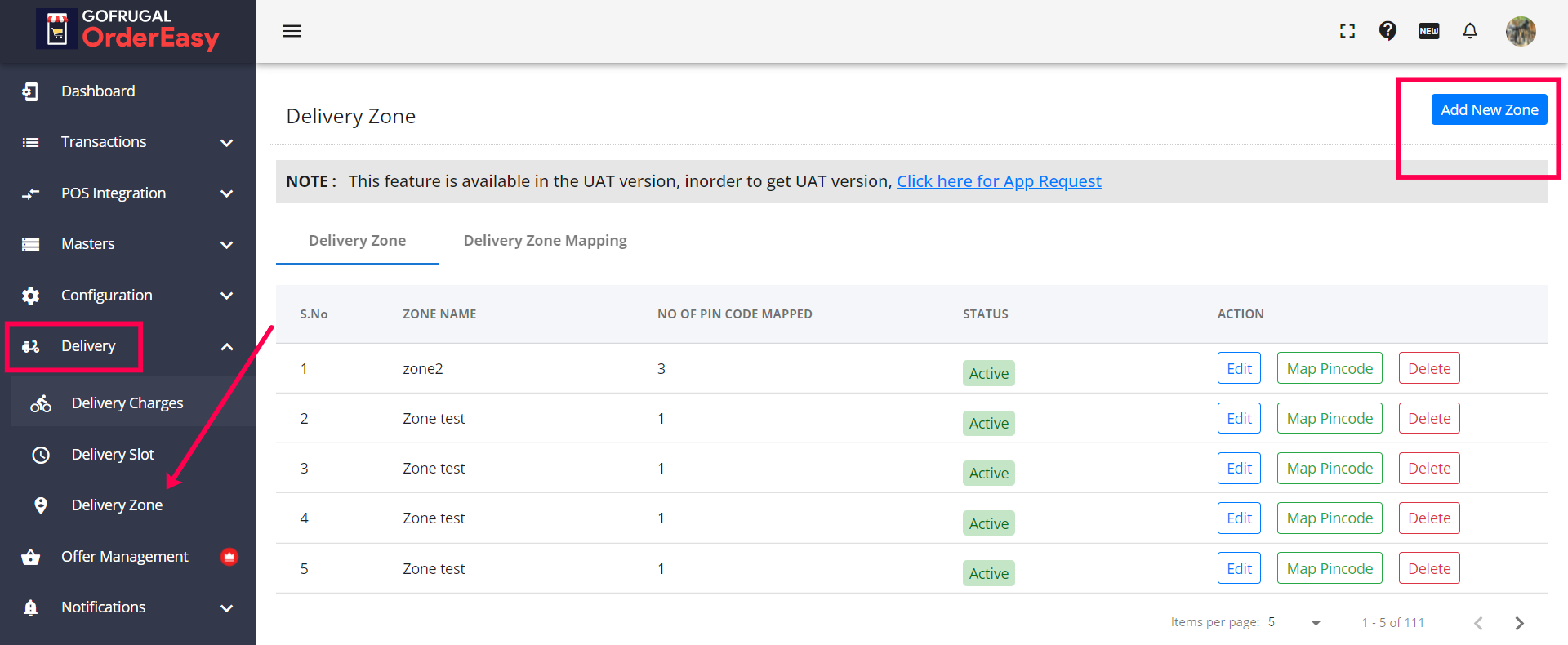

Step 5: You can create a zone by clicking on the delivery zone under the delivery option in the menubar

Step 6: You will find the option to add new zones under the delivery zone option at the right top corner



Step 7: Create a new zone and set its status to active

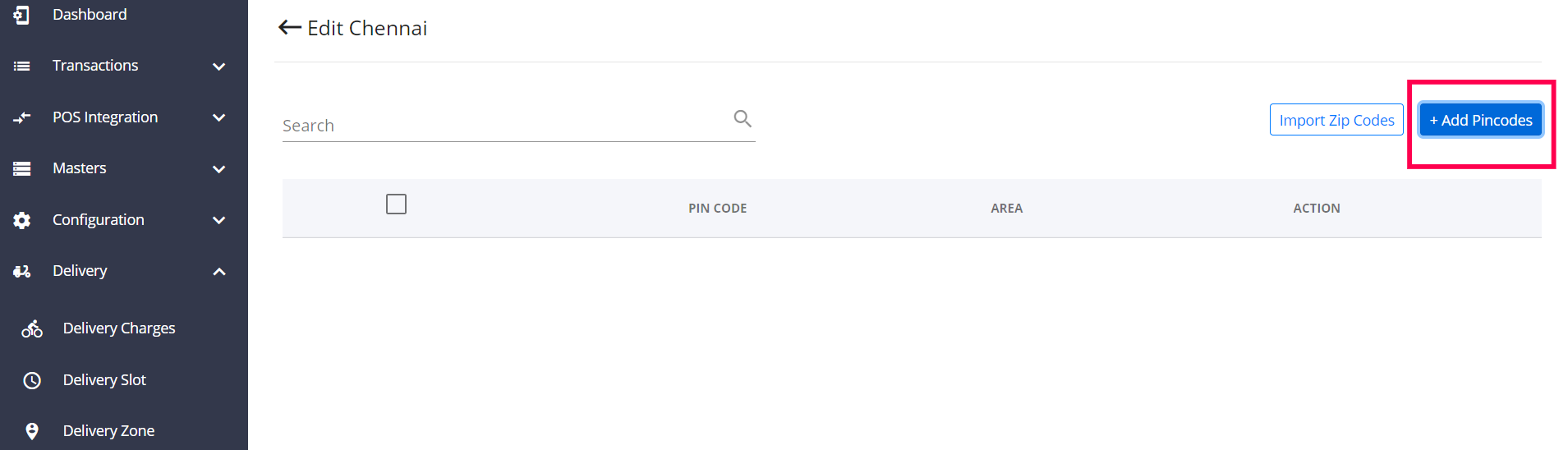

Step 8: A new screen will appear and you will need to click the "add pincode" button in the top right corner

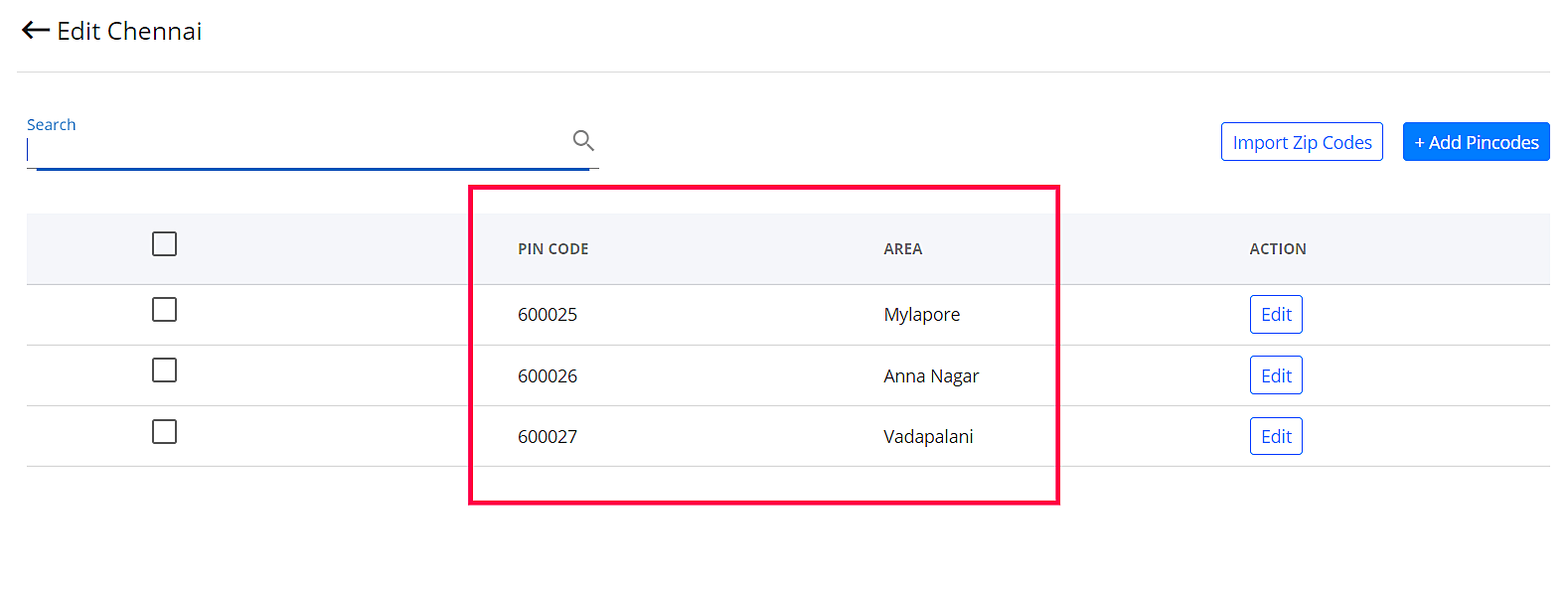

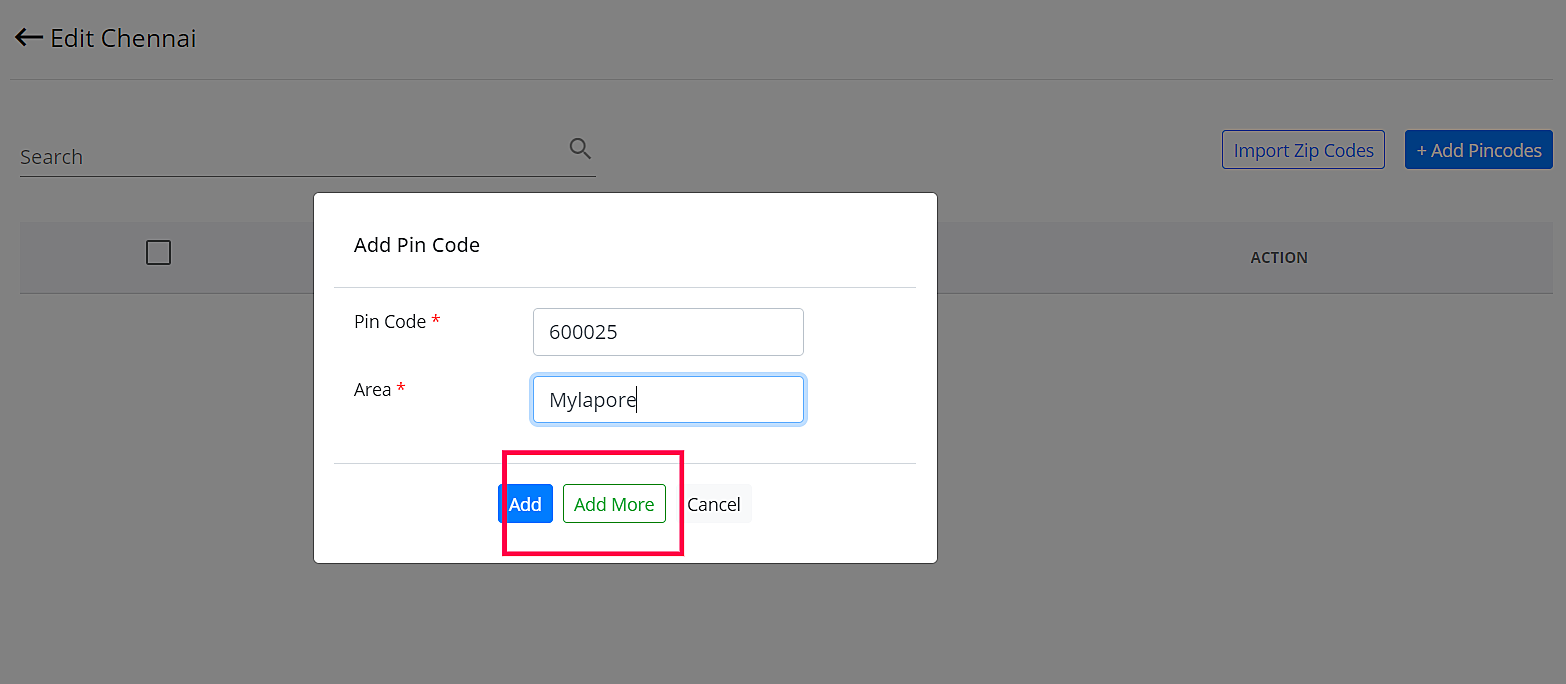

Step 9: Create a zone by adding the pincode and its area name



Step 10: Select add after entering a pincode if you have only one location within that zone. If you have many locations within that zone, click add more to add many pincodes.





Step 11: In case of more than one pincode, the option to import zip codes can be found under created zones

​

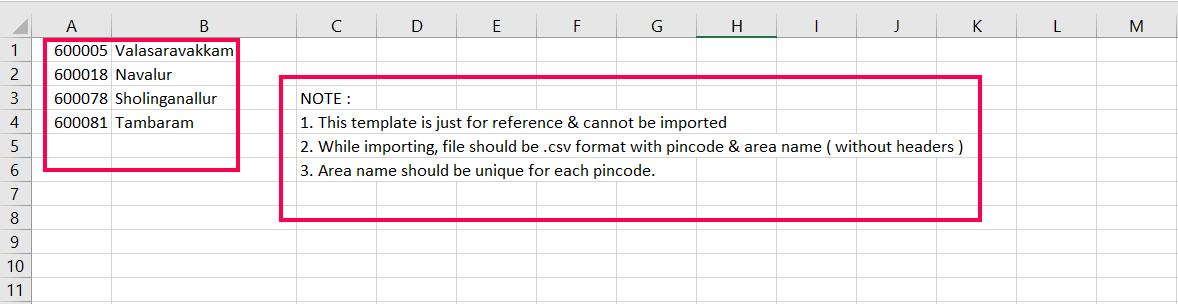

Step 12: Once you select the option, you can download the excel file template for adding the pincode and location

Step 13: Ensure the pin codes and area names are unique. These entries will not be accepted if they are duplicates.

Step14: You can save it as a CSV file after entering the pincode and location. Please follow the steps given in below image.




Step 15: You can attach the file by selecting the import zip code option after creating it to automatically enter all the data for you

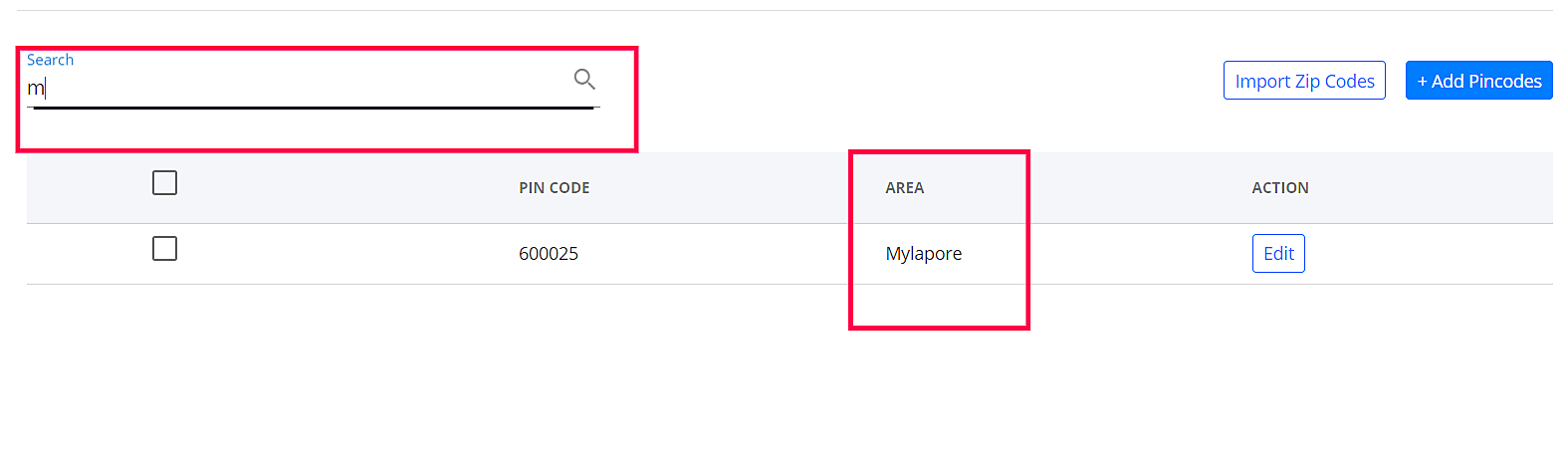

Step 16: Choose the created zone and you can search by the pincodes or area names you added under it

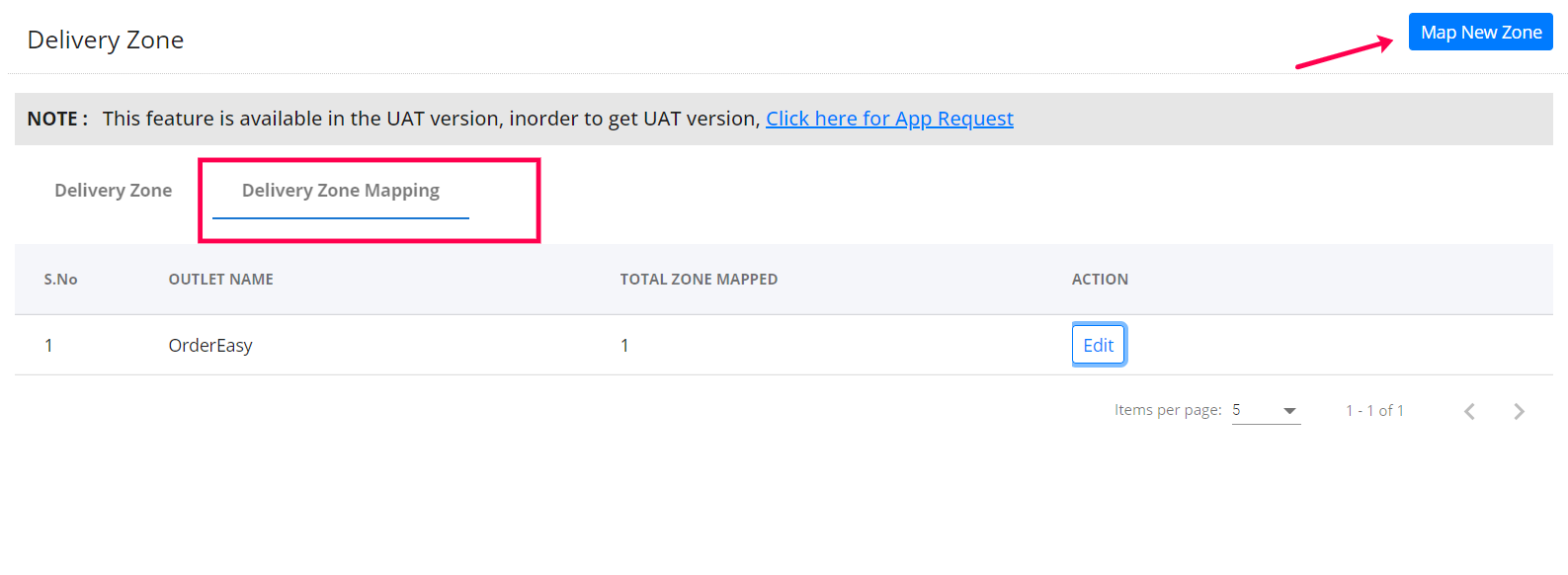

Step 17: You can map the created zone with the outlet to receive orders from customers under the delivery zone mapping option.

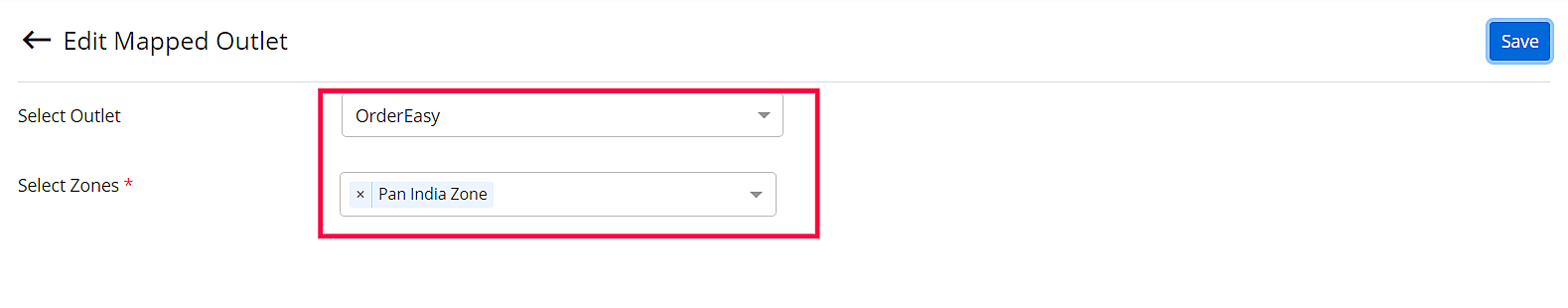

Step 18: At the top right corner of the screen, you'll find a map new zone. There, you can select the outlet and the zone for that specific outlet.


Step 19: You can select more than one zone for a single outlet. This indicates which outlet will receive orders from which zone




Step 20: Select delivery and click delivery charges to set delivery charges for created zones

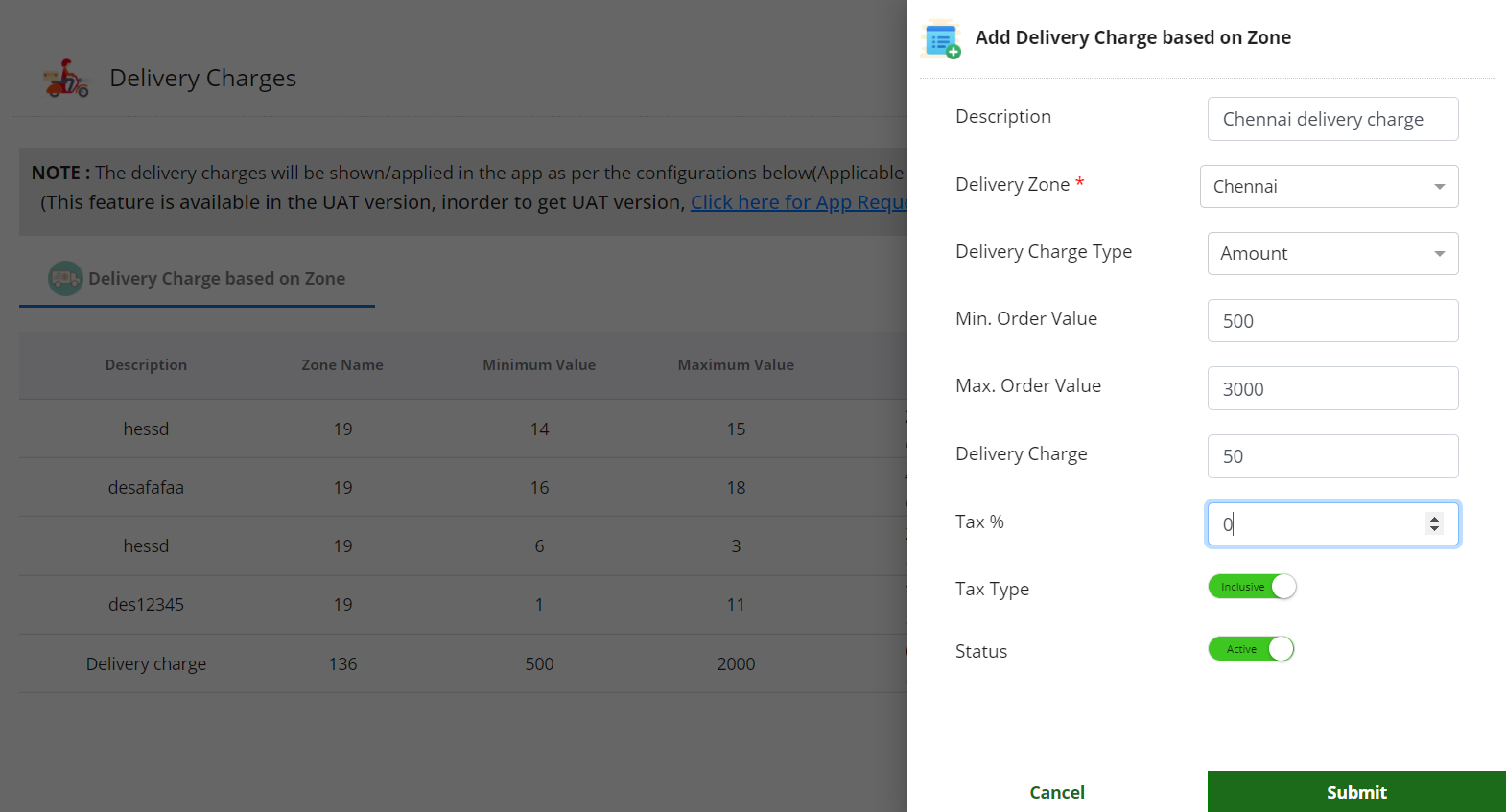

Step 21: Choose the Add option and fill out the details

  1. Description

  2. Choose delivery zone

  3. delivery charge type

  4. Minimum order value

  5. Maximum order value

  6. Delivery charge

  7. Tax

  8. Status and save the details

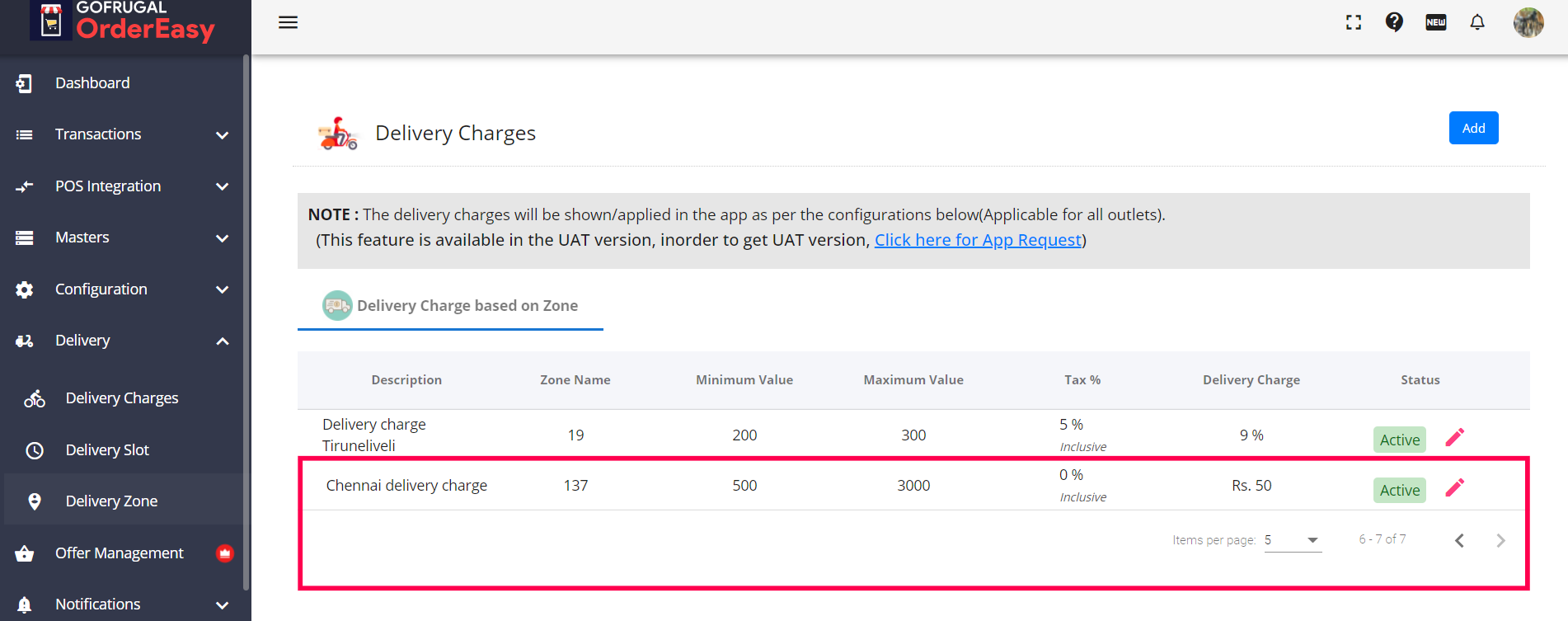

Step 22: You can set delivery charges based on the zone and make it as active
