Login and Punching a KOT

Steps for Login and Punching a KOT in Touch POS with Steward are given below:
  1. Double click the GoFrugal Touch POS short-cut icon.



  2. The Login screen is displayed.



  3. In the Login Required section -
    • The User Name field is automatically displayed.
      Note: The user who have change the User Name, please enter the correct user name.
    • In the Password field, tap to display the Virtual Keyboard.



      • In the Virtual Keyboard, tap the key to enter password.
    • The Date field is automatically displayed.
    • Tap Login to logging in to Touch POS.



  4. The Order Type screen is displayed.



  5. Tap Dine In, the Table screen is displayed.



    • Use the below colors to identify the table status:
      • Green Color - Available. Tap any Available table.
      • Orange Color - Occupied or Seat Guest
      • Sky Blue Color -
        • Ready to vacate,
        • Due Pending or Ready to Settle

  6. The Steward List starts blinking and a message Please select the steward is displayed.



  7. In the Steward List, tap a Steward name.

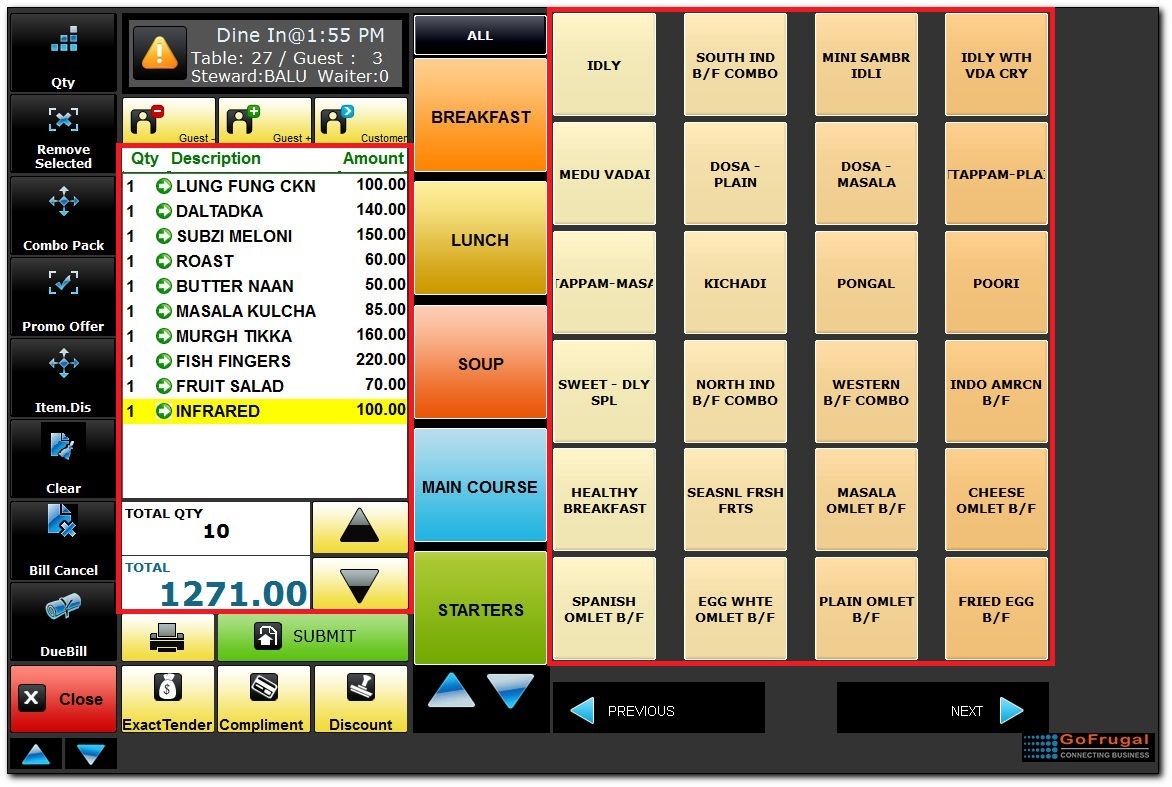

  8. The Bill screen is displayed.



    • Tap Guest - and Guest + to decrease and increase the guest count respectively.



    • Tap Category to list the KOT by categories wise.
      Note: You can create different categories based on your KOT, Such as -
      • All - it comprises of Breakfast, Lunch, Soup, Main Courses, Starters, Beverages and Dessert KOT items.
      • Main Kitchen - it comprises of Breakfast, Lunch, Soup, Main Courses and Starters KOT items.
      • Mock Tail - it comprises of Beverages and Dessert KOT items.


    • Tap Dishes to take order from guests.



    • Tap Selected Dishes, the Order of Serve screen is displayed. Tap the number in the Order of Serve to set the priority of serving the KOT item according to the guests.



    • Tap Qty, the Qty screen is displayed.
    • In the Qty select from the below option
      • Tap 0 to 9 to set the Qty numbers for KOT items.
      • Tap '-' and '+' to decrease and increase the QTY of KOT items respectively.
      • Tap Back space to remove the last digits in quantity field.
      • Tap Clear to clear the quantity field.
      • Tap Finished to close the Qty screen.



    • Tap Submit to punch the KOT.
    • A message Saved Successfully. Please note the KOT No : <<KOT No.>> is displayed. Tap OK.
  9. The Table Screen is displayed with Occupied Table.



    Note: The Steward who has taken the KOT order is displayed with KOT sign.
You can give more attention to your guest by allotting Waiter for each table. To allot a waiter for each table select Punching a KOT Steward and Waiter
