UOM (Unit of Measure)

UOM (Unit of Measure)

UOM vs Item Mapping

UOM (Unit of Measure) is defined as the standard unit of measurements used when accounting for stock, and expressing them in quantities. For example :- KG, Grams, Unit, PCS, PAC, ML, Ltr, Box etc.

Enable UOM & Mapping of Items with UOM

Step 1 : Go to Masters >> More >> Tools >Master Configuration
Step 2 : Click on Edit option on item.
Step 3 : Now search UOM in search field caption and enable option of Base UOM, UOM
              conversion value, Sub UOM, Sub UOM conversion value
Step 4 : Click on save to save changes and Re-login
Step 5 : Go to Masters >> Item >> UOM
Step 6 : Click on Add conversion option to create new UOM
Step 7 : Enter name of UOM and alias name after that click on Save option.
Step 8 : Go to Masters >> Item >> UOM vs Item Mapping for mapping UOM with
               respective items
Step 9 : Click on Edit option for mapping
Step 10 : Put Base Volume/Qty, Base UOM, Sub UOM, Rate and select default UOM as
                per your requirement.
Step 11 : Now go to Masters >> Item >> Item
Step 12 : On the packing tab you can map Base UOM, Sub UOM & its conversion value
                 respective to that item.

How to proceed with steps

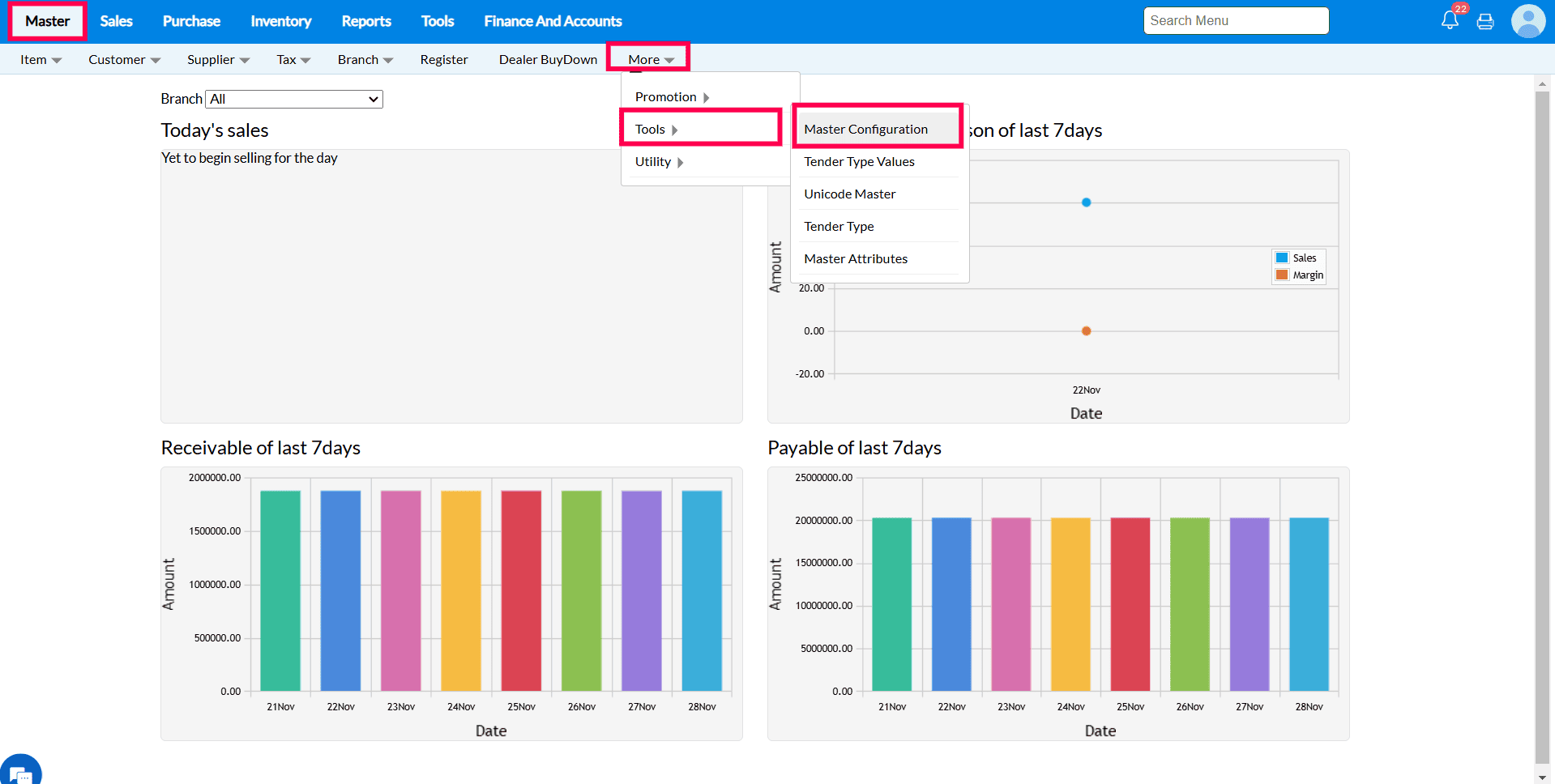

Step 1 : Go to Masters >> More >> Tools >Master Configuration

1646923880991


Step 2 : Click on Edit option on item.

1646923967792


Step 3 : Now search UOM in search field caption and enable option of Base UOM, UOM
              conversion value, Sub UOM, Sub UOM conversion value

1646924053456


1646924174702



Step 4 : Click on save to save changes and Re-login

 1646924258404

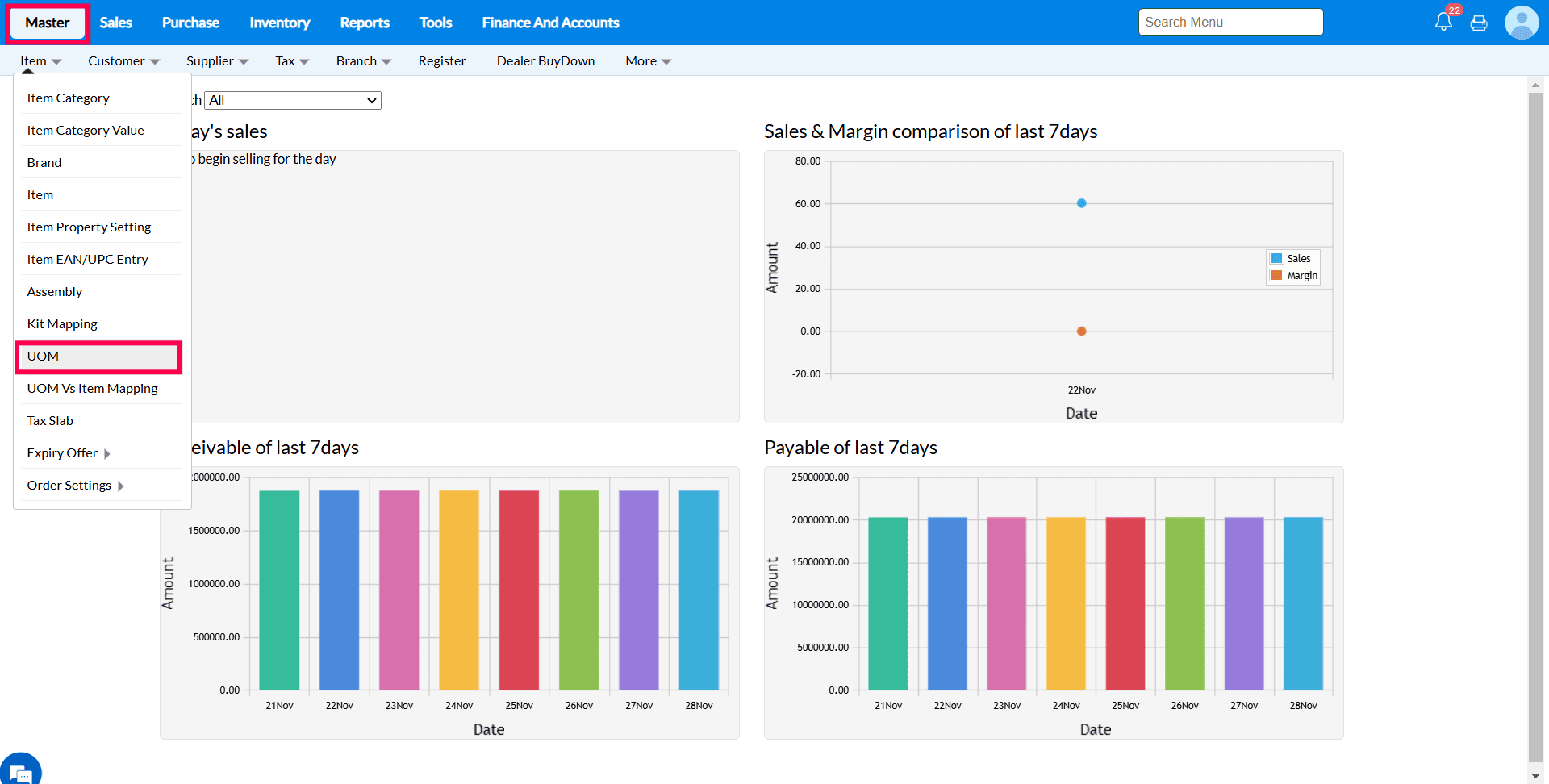

Step 5 : Go to Masters >> Item >> UOM

1646924406814









Step 6 : Click on Add conversion option to create new UOM

1646924531761



Step 7 : Enter name of UOM and alias name after that click on Save option.

1646924640176

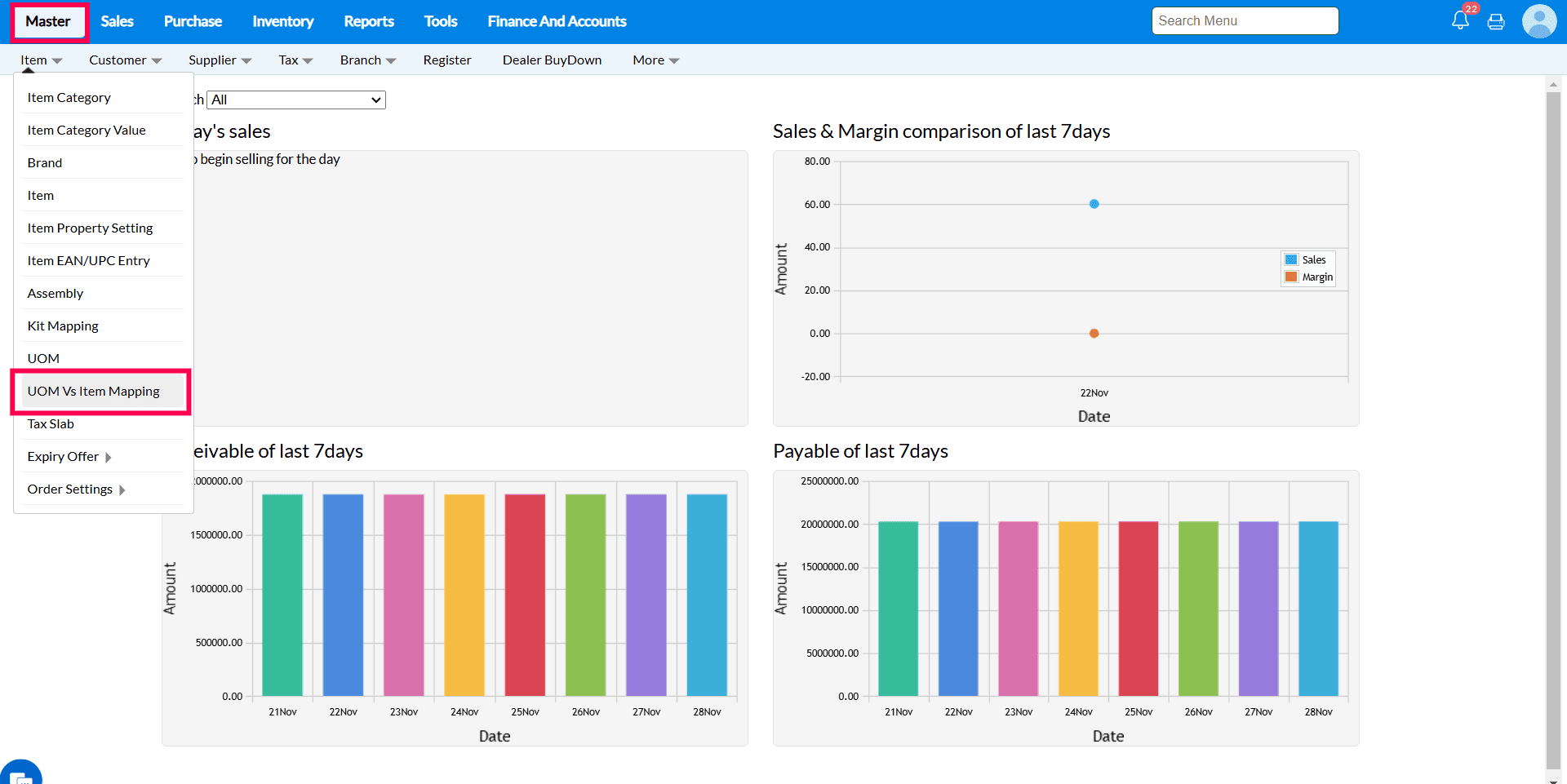

Step 8 : Go to Masters >> Item >> UOM vs Item Mapping for mapping UOM with
               respective items

1646924731181


Step 9 : Click on Edit option for mapping

1646925029508


Step 10 :- Put Base Volume/Qty, Base UOM, Sub UOM, Rate and select default UOM as
                per your requirement and click on save.

1646925117599


Step 11 : Now go to Masters >> Item >> Item

1646925238040

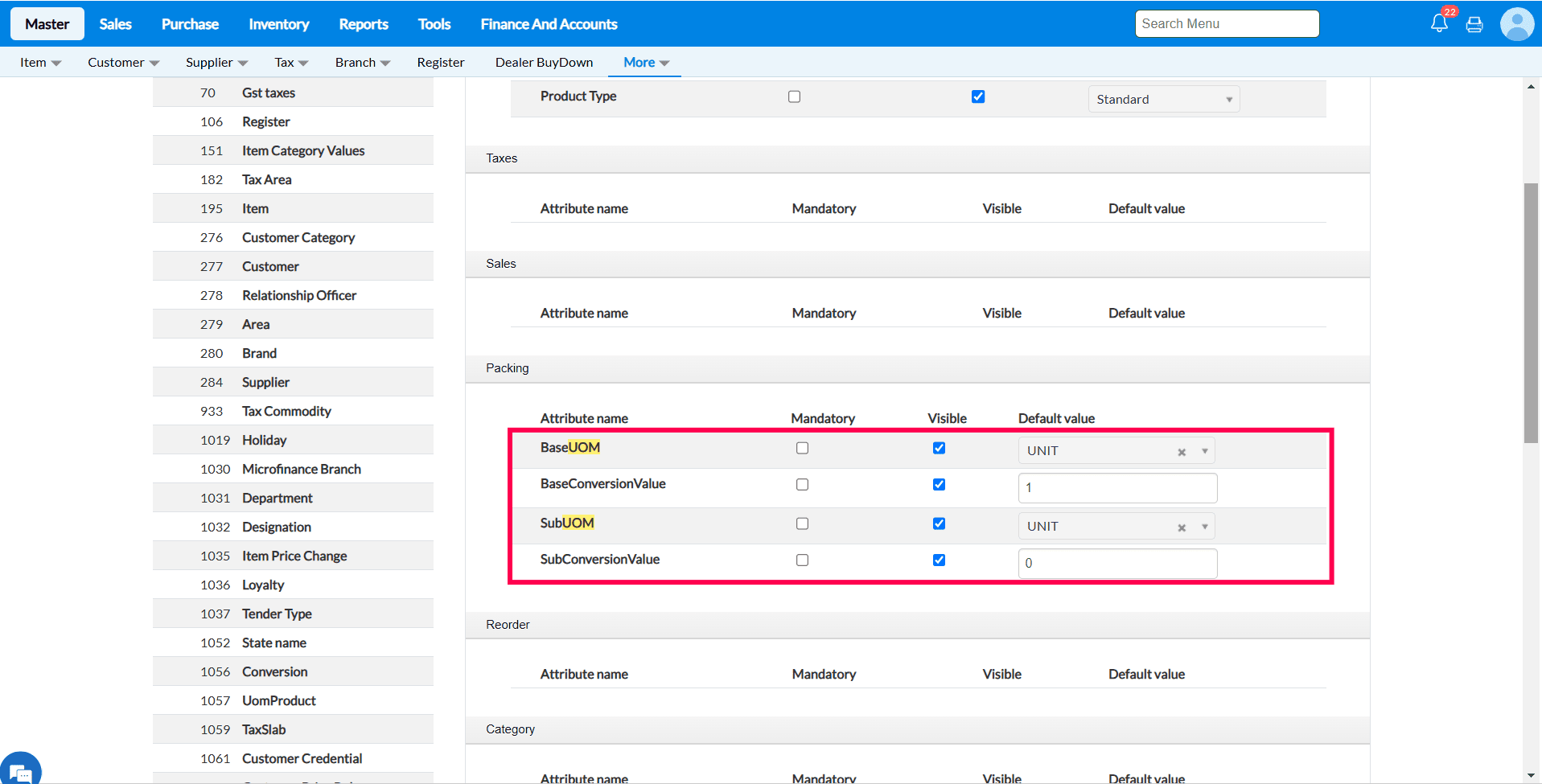

Step 12 : On the packing tab you can map Base UOM, Sub UOM & its conversion value
                 respective to that item.

1646925310647


Step 13 : Click on save option.


 FAQ:

1. What is the purpose of Indent in UOM vs Item mapping screen?

Indent in UOM vs Item Mapping -Based on the Selected Sub UOM /Base UOM , in Indent screen Packing unit will be displayed. For more info- "Manual Indent"
  • Sales, Stock, and Indent Quantities will be displayed based on the UOM vs Item Mapping settings.
  • If Sub UOM (e.g., Pieces) is set as default, then all quantities will be shown in Sub UOM.

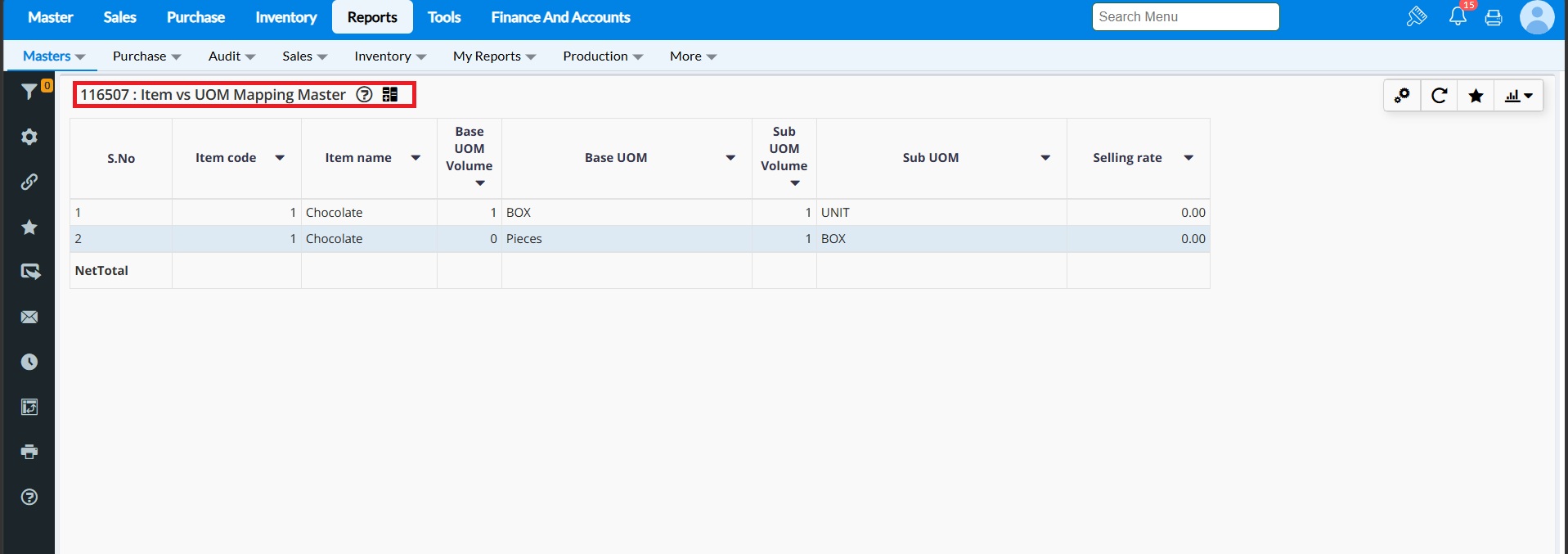

2.How can I access the Item vs UOM Mapping Master report?
​
A: Follow the steps below:
  1. Go to Reports
  2. Select Master
  3. Click on Item vs UOM Mapping Master
