Item Master setup for weighable Items - Barcode Weighing Scale RPOS7.

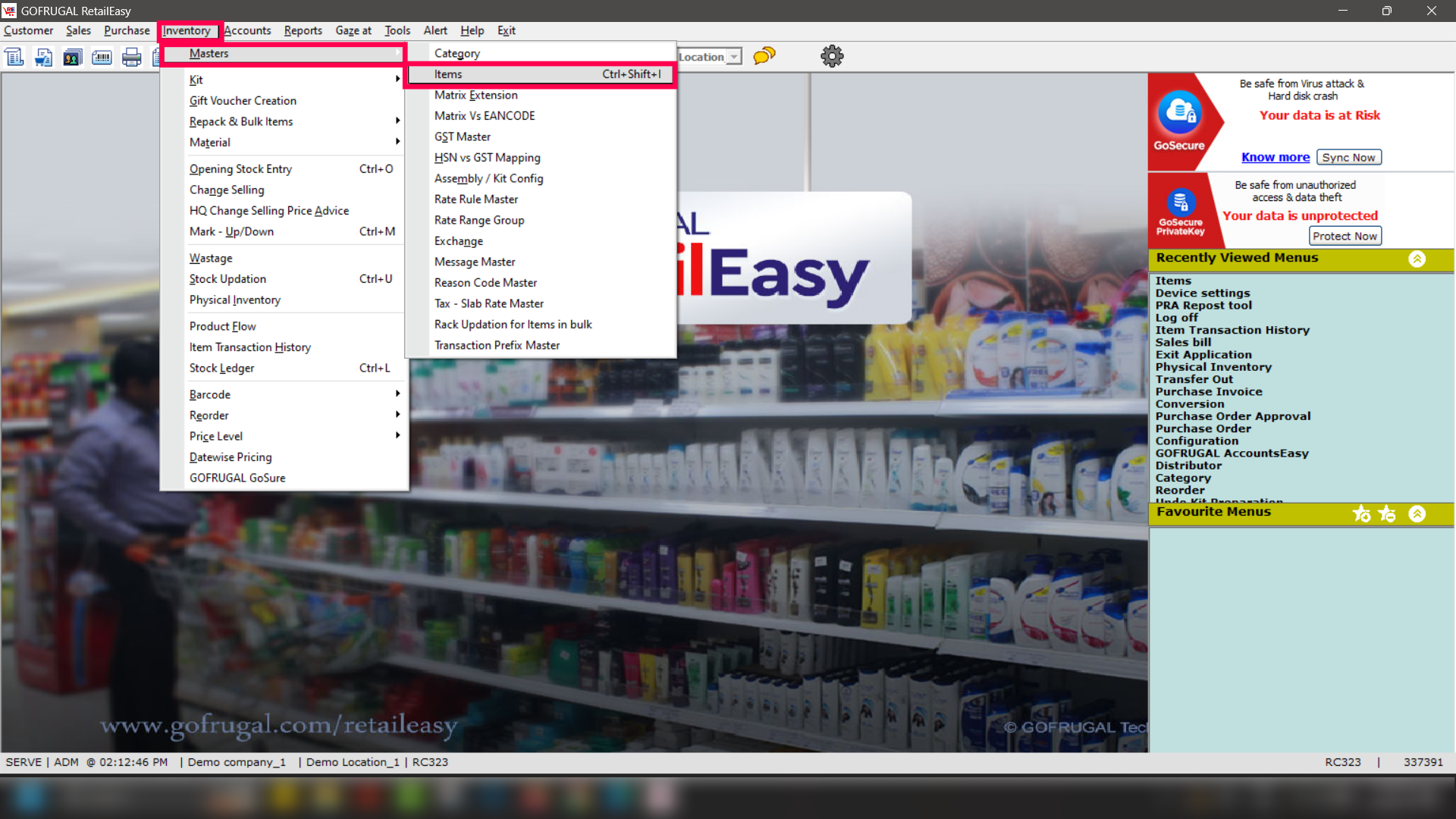

Step 1: Go to Inventory > Masters > Items

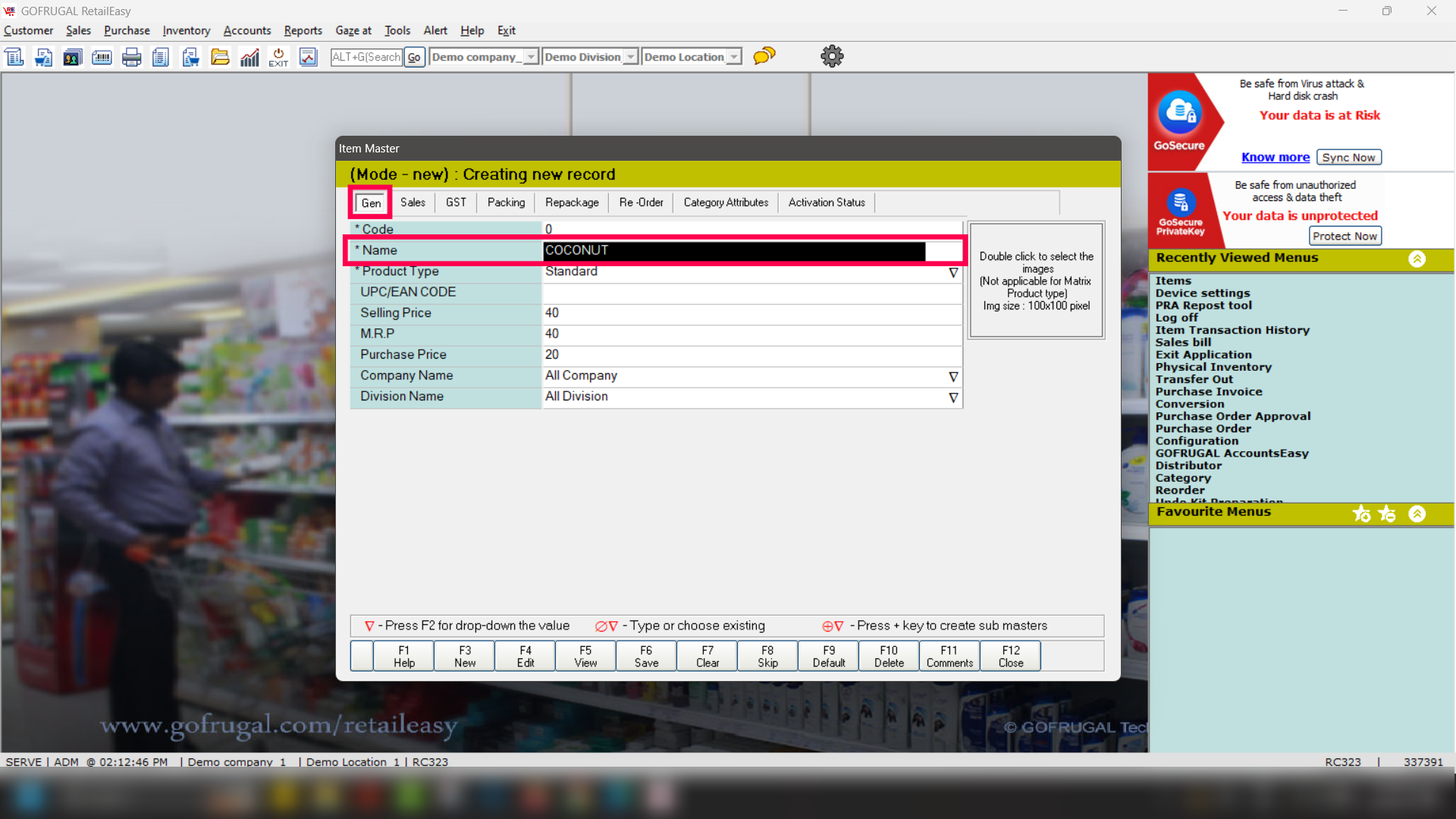

Step 2: In General Tab, put the name as COCONUT.

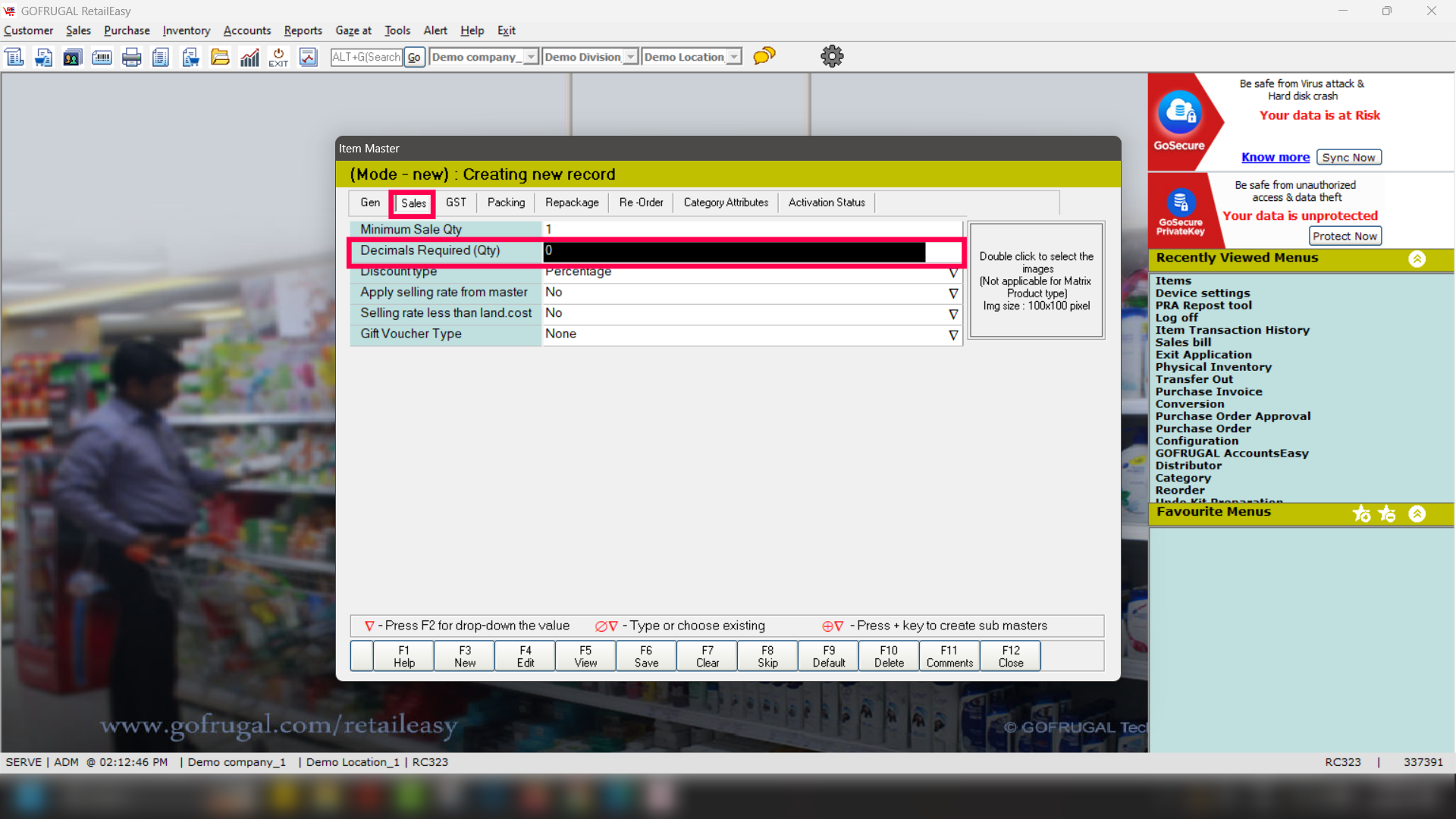

Step 3: Click on Sales Tab and put the Decimal Required (Qty) as 0.

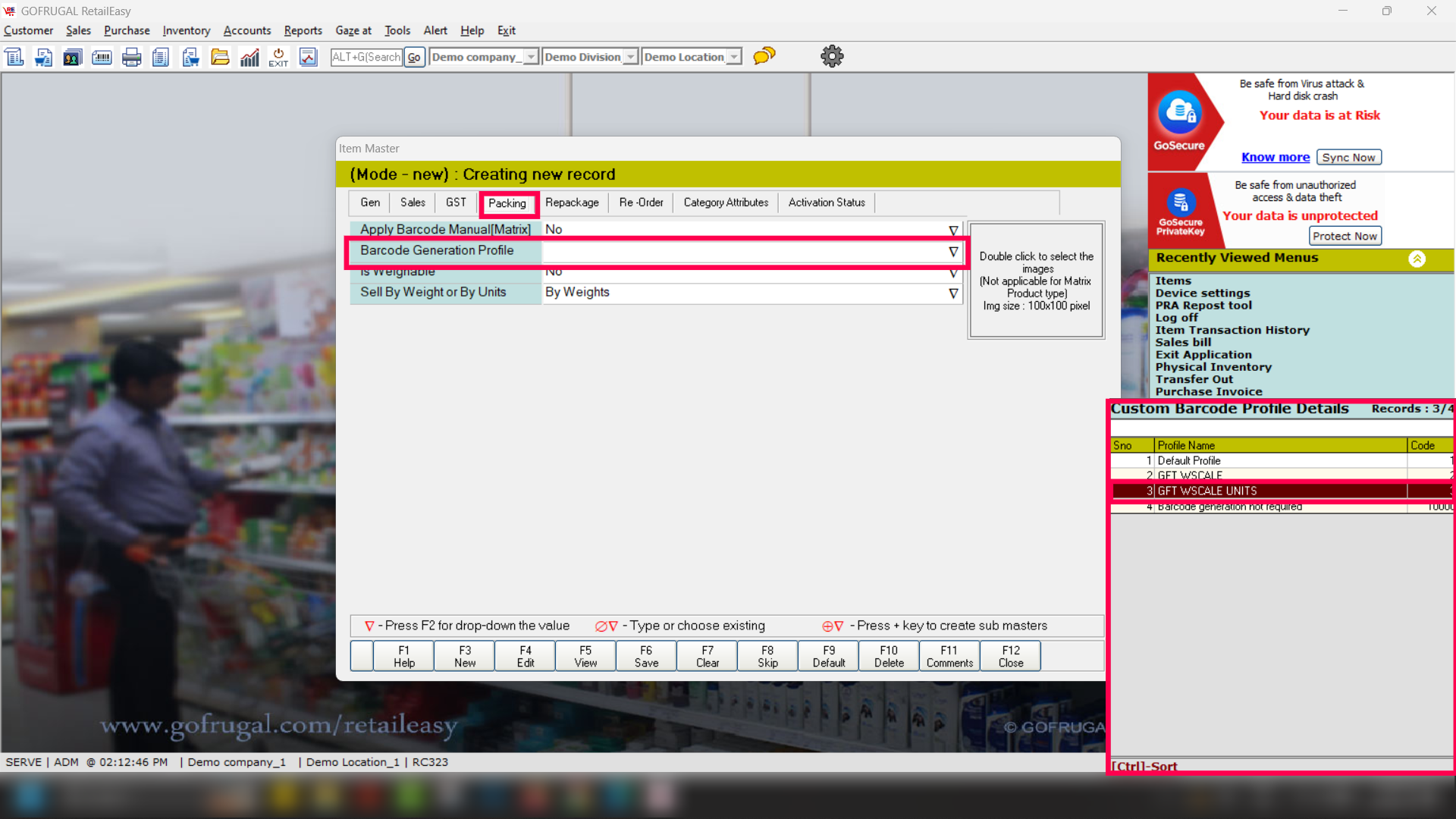

Step 4: Click on the Packing Tab and then click on Barcode Generation Profile and press F2 to load the Custom Barcode Profile Details LOV.
Step 5: Select the desired profile from the list.

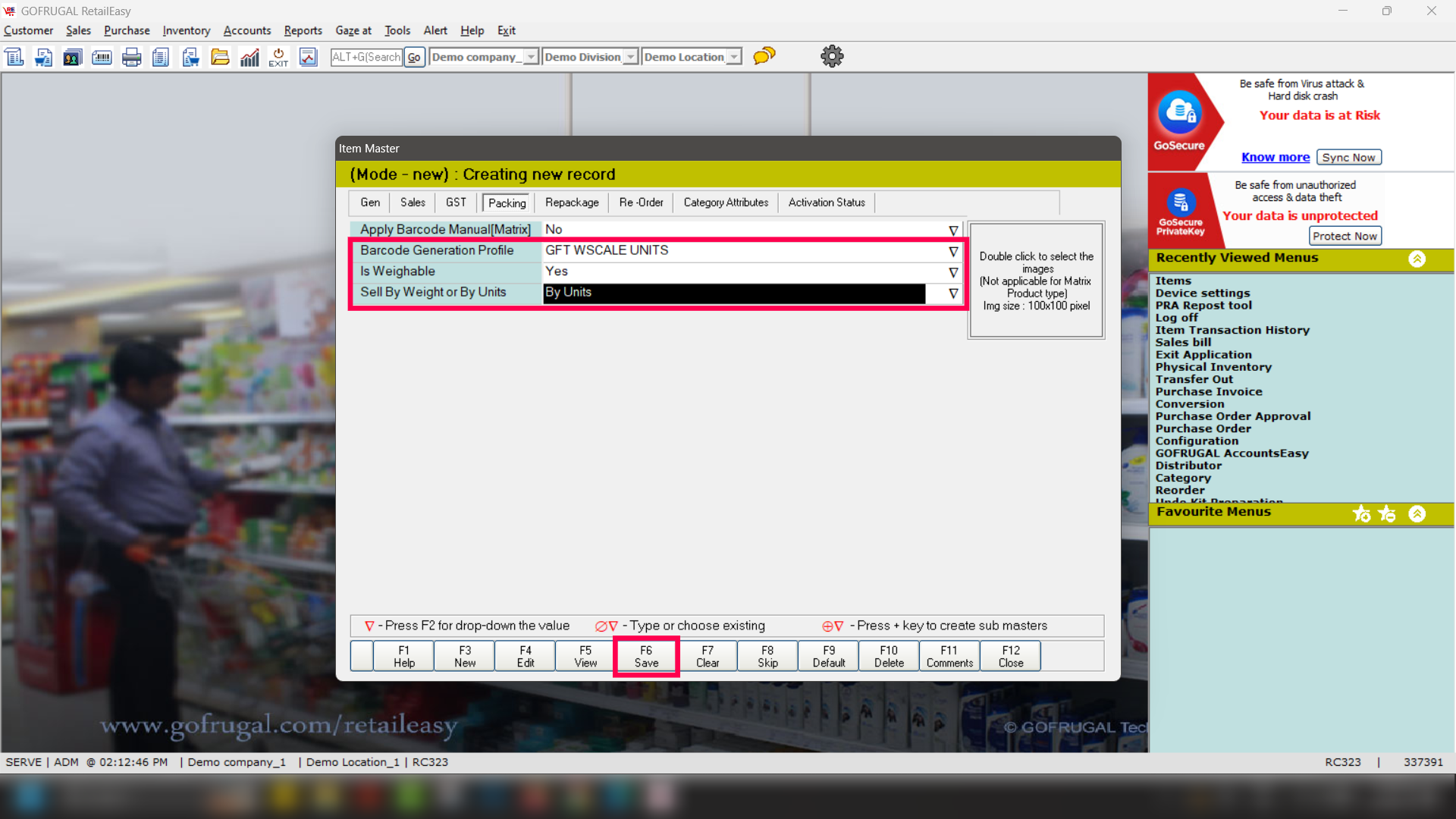

Step 6: Set the Is Weighable as Yes & Sell By Weight or By Units as By Units.
Step 7: Press F6 [Save] to save changes.
Step 1: Go to Inventory > Masters > Items
Step 2: In General Tab, put the name as SUGAR LOOSE.
Step 3: Click on Sales Tab and put the Minimum Sales Qty as 0 & Decimal Required (Qty) as 3.

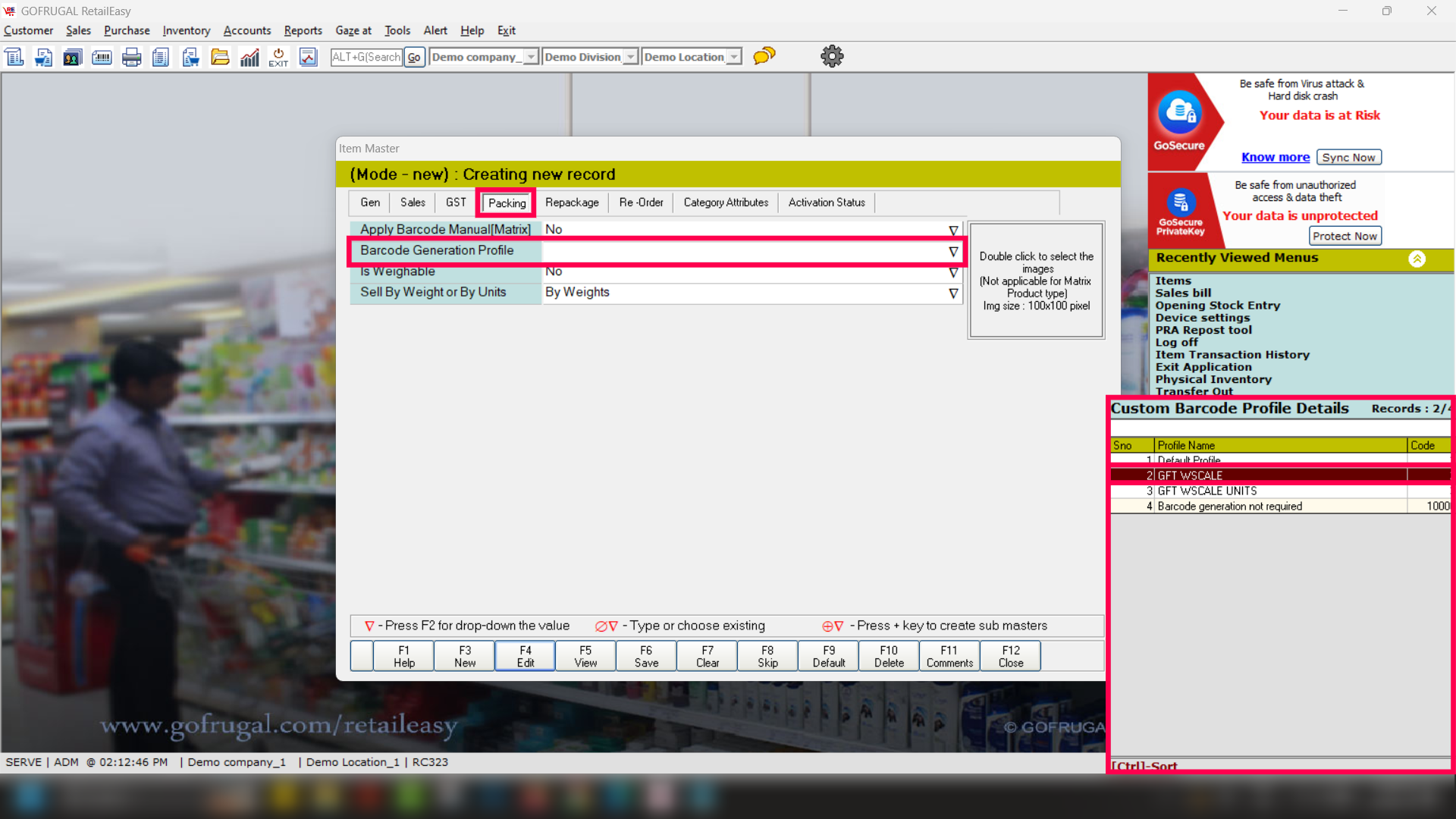

Step 4: Click on the Packing Tab and then click on Barcode Generation Profile and press F2 to load the Custom Barcode Profile Details LOV.
Step 5: Select the desired profile from the list.
Step 6: Set the Is Weighable as Yes & Sell By Weight or By Units as By Weight.
Step 7: Press F6 [Save] to save changes.
