Configuration of a Barcode Profile for Weighing Scale RPOS7.
| A. Barcode Profile configuration for Weighable items |

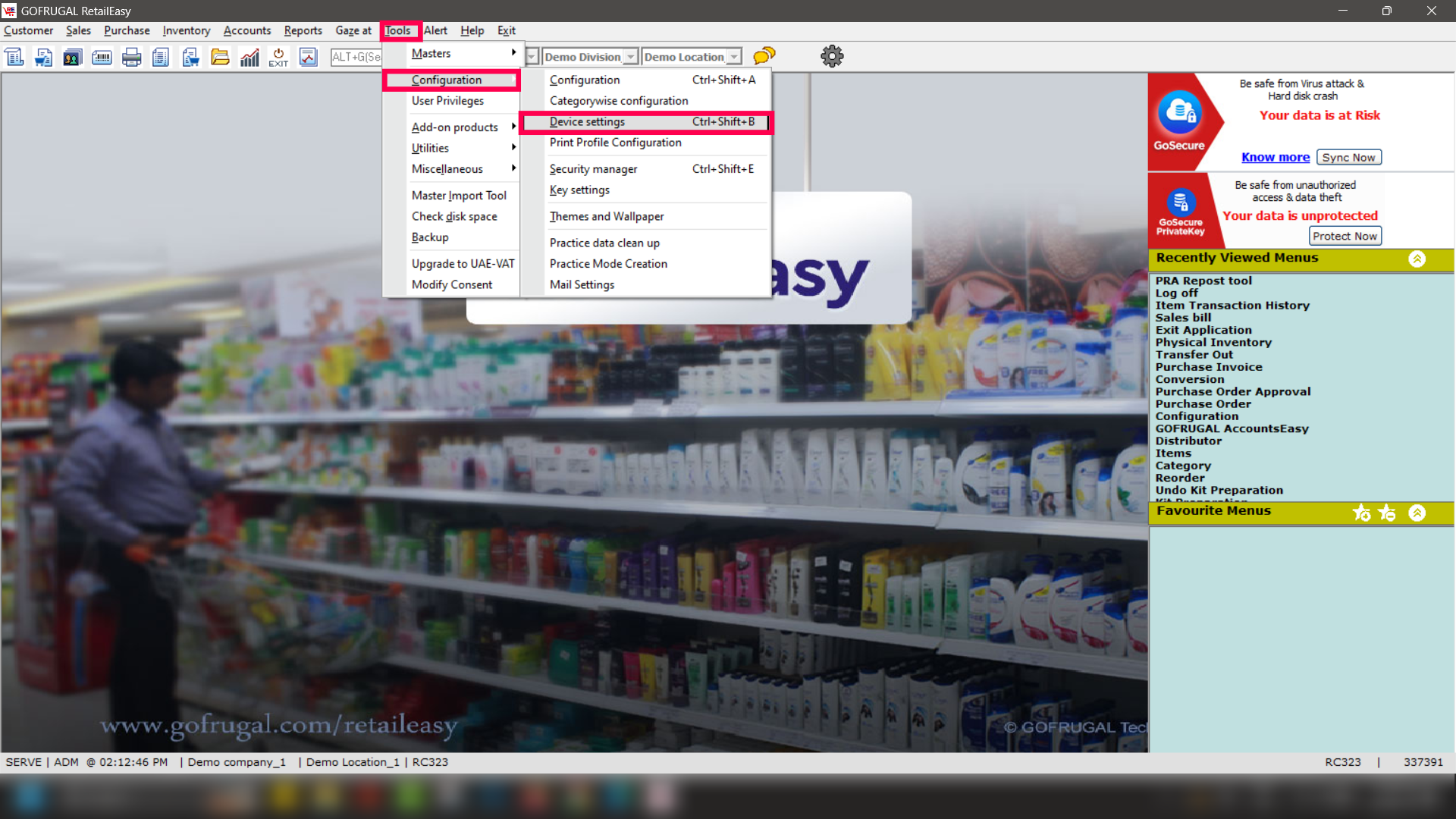

1. Click Tools >> Configuration >> Device Settings to open the Device configuration screen.

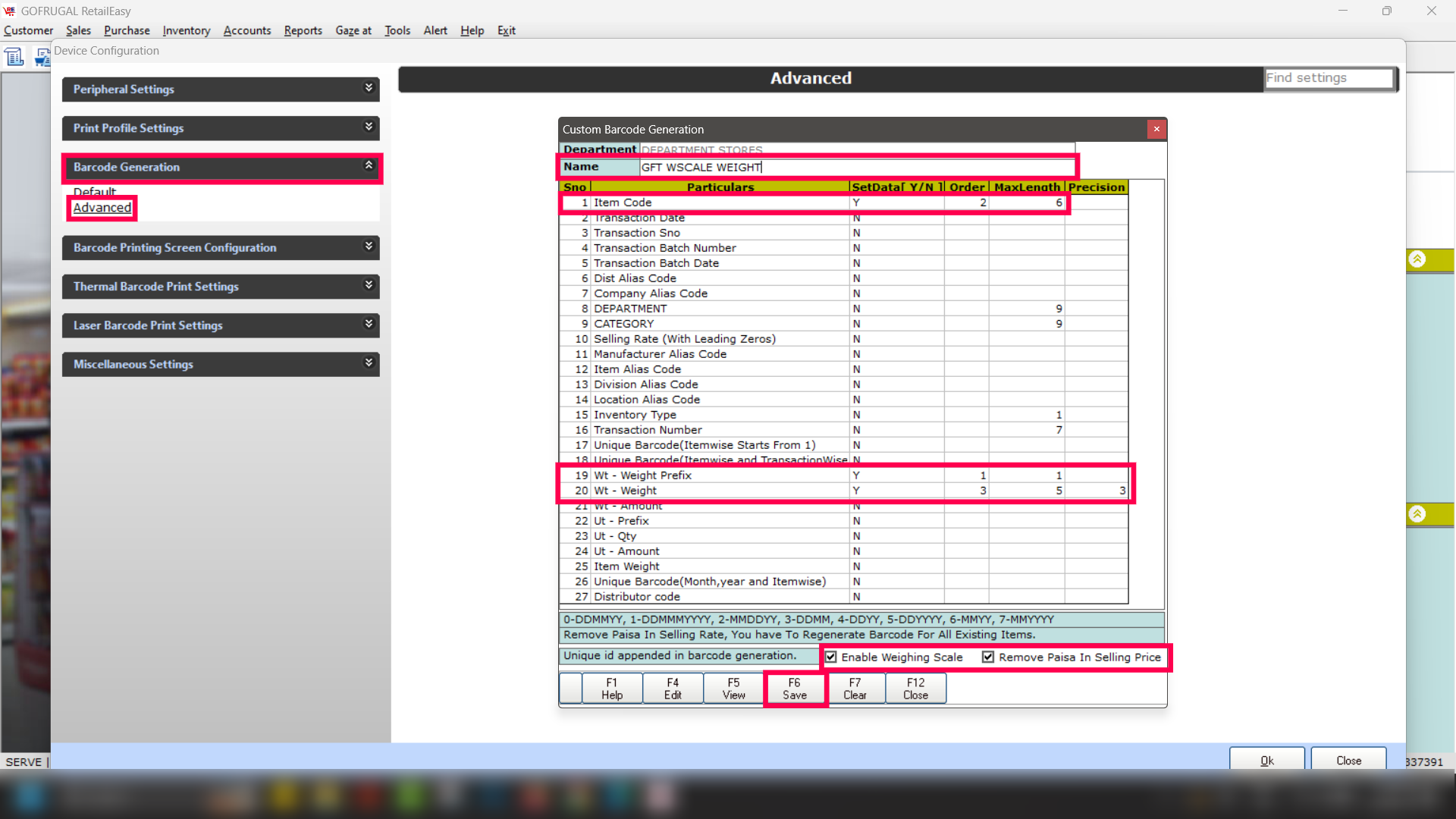

2. Click Barcode generation >> Advanced to open the Custom Barcode Generation screen.
3. In the Name field, enter the name of the Barcode profile.
4. In the [SetDate[Y/N] column, press Y to select the particulars from the Particulars column. [Item Code, Wt - Weight Prefix, Wt - Weight]
5. In the Order column, enter the number to define the order of the selected field in the Barcode. [For Example, Wt - Weight Prefix = 1, Item Code= 2, Wt - Weight = 3]
6. In the MaxLength column, enter the number to define the number of characters for the selected field. [For Example, Wt - Weight Prefix = 1, Item Code= 6, Wt - Weight = 5]
7. In the Precision column, enter the numbers to define the decimal points wherever applicable. [For Example, Precision = 3]
8. Select the Enable Weighing Scale checkbox & Remove Paisa in Selling Price checkbox.
9. Click Save or press F6 to save the configurations in the defined profile.
So, after the configuration, the Barcode format will be:
| B. Barcode Profile Configuration for Countable Items: |
1. Click Tools >> Configuration >> Device Settings to open the Device configuration screen.
3. In the Name field, enter the name of the Barcode profile.
4. In the [SetDate[Y/N] column, press Y to select the particulars from the Particulars column. [Item Code, Ut - Prefix, Ut - Qty]
5. In the Order column, enter the number to define the order of the selected field in the Barcode. [For Example, Ut - Prefix = 1, Item Code= 2, Ut - Qty = 3]
6. In the MaxLength column, enter the number to define the number of characters for the selected field. [For Example, Ut - Prefix = 1, Item Code= 6, Ut - Qty = 5]
7. In the Precision column, enter the numbers to define the decimal points wherever applicable. [For Example, Precision = Blank]
8. Select the Enable Weighing Scale checkbox & Remove Paisa in Selling Price checkbox.
9. Click Save or press F6 to save the configurations in the defined profile.
So, after the configuration, the Barcode format will be:
